Precis som köksfläkten Hörn är även denna köksfläkt designad för situationer där man vill kunna utnyttja ett hörn av rummet. En av köksfläktens två sidor är längre än den andra.

Köksfläkten Hörn är specialdesignad för de situationer där vedspisen eller den vattenmantlade vedspisen och spishällen är placerade i hörnet av rummet.

Partners

Tekniska egenskaper

    • Installation: wall-mounted
    • Cladding: Stainless steel/Painted/Plaster
    • Ducted or air recirculation version
    • Controls: touch or mechanical control panel
    • Timer function
    • Lighting: with LED bars
    • Dishwasher-safe filters
    • Resistant to high temperatures
    • Remote control (optional)
    • Extraction rate: 910 m3/h
    • Noise level: 60 dB
    • Power consumption: from 149.8 to 308.2 W
    • Speed settings: 4
    • Outlet: ø 150 mm







Tekniska data

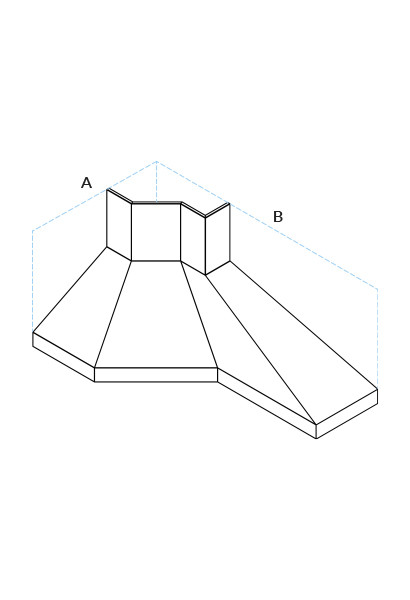

Hörn med en förlängd sida 900x1500

Hörn med en förlängd sida 900x1500
A 900 mm
B 1500 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 13,4 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).

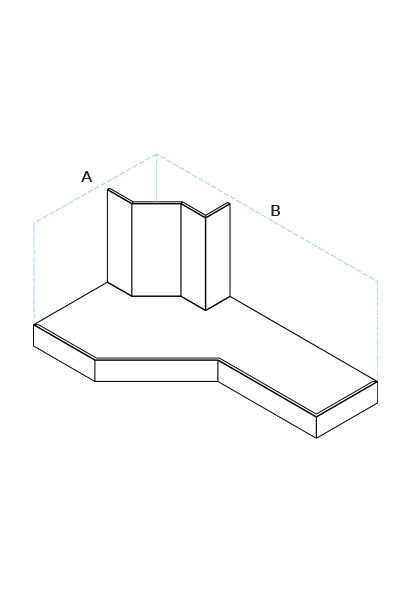

Hörn med en förlängd sida 900x1500 in the flat version

Hörn med en förlängd sida 900x1500 in the flat version
A 900 mm
B 1500 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 13,4 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).




Hörn med en förlängd sida 900x1900

Hörn med en förlängd sida 900x1900
A 900 mm
B 1900 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 14,4 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).




Hörn med en förlängd sida 900x1900 in the flat version

Hörn med en förlängd sida 900x1900 in the flat version
A 900 mm
B 1900 mm
outlet ø 150 mm
Max suction power (W) 290 W
LED Power (W) 14,4 W


The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).
