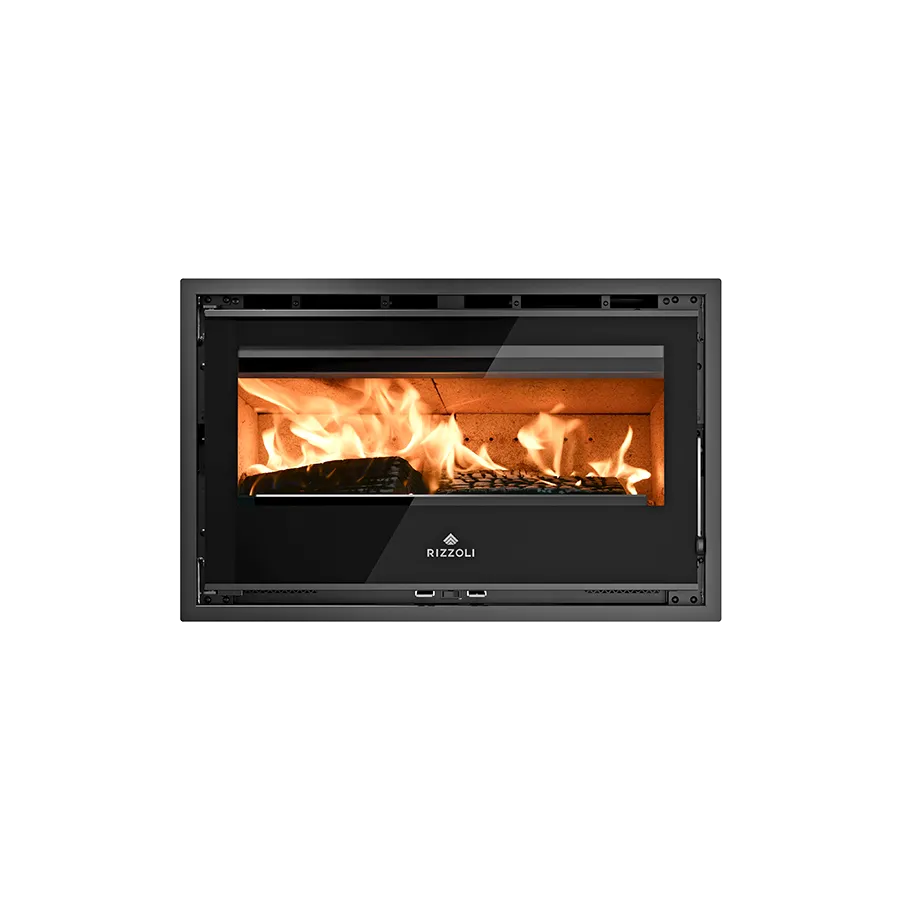

Krbovà vložka

X 80 L

X 80 L
Krbovà vložka
X 80 L

Materie prime di altissimo livello, moderne tecnologie e cura artigianale dei dettagli.

Wood burning insert, with modern and essential lines, are built with raw materials of the highest level, modern technologies and craftsmanship of details.

Partners

Technické charakteristiky

    • Vent to the Outside - External Air®
    • Primary, secondary and tertiary air regulation
    • Certified Combustion System Superflame®
    • 5mm thickness silk-screened glazed ceramic glass Fire Door - Shiny Glass®
    • Upper smoke outlet
    • 3- or 4-sided frame 25 mm with anti-expansion system thermal spring
    • Hermetic steel body
    • Handle with retractable opening and always cold with Soft Touch effect
    • 30 mm vermiculite high density (900 kg/m3) combustion chamber
    • Ash stopper deflector
    • Micro switch for ventilation stop when the door is open
    • Independent ducting ø 120 mm (optional)
    • Axial ventilation kit with dual independent turbines Hot Air Flow® (optional)
    • Independent front ventilation (optional)

Technické údaje

    • Šírka: 780 mm
    • Výška: 480 mm
    • Hĺbka: 420 mm
    • Spaľovacia komora (šxhxv): 660x305x235 mm o
    • Nominálny výkon: 7,7 kW
    • Max, výkon: 12,0 kW
    • Účinnosť: 87,1 %
    • Hmotnosť: 115 Kg

Dokumentácia

Stiahnite pdf pre danú sériu
