Wood-burning thermo-cookers

STP

STP
Wood-burning thermo-cookers

STP

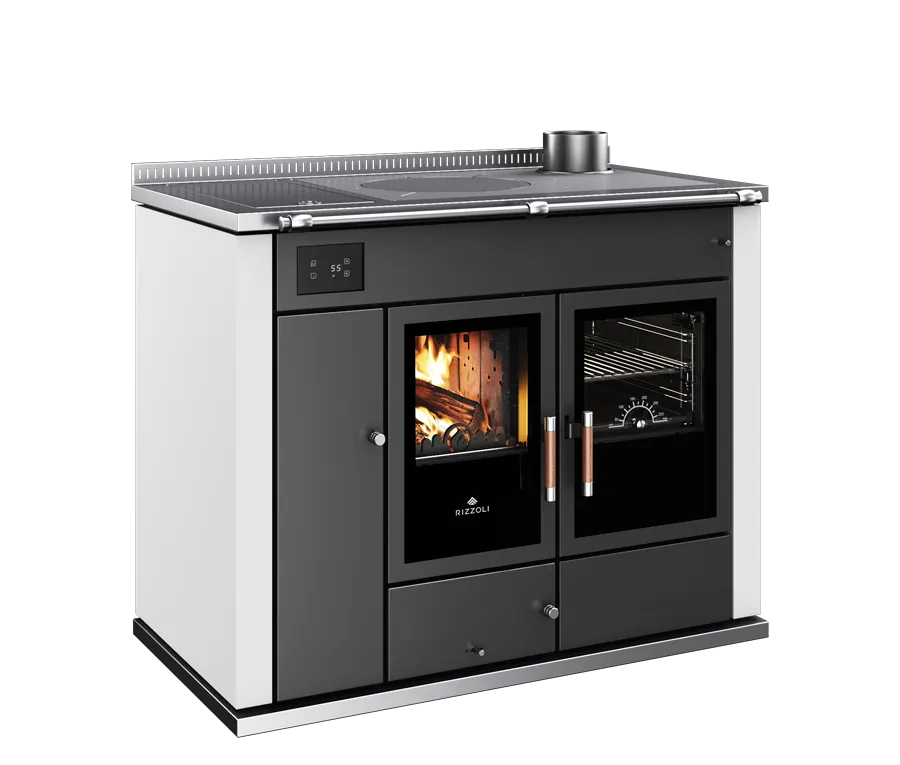

The new STP has been completely redesigned, both in terms of technology and design. Inside, the innovative H2O System® certified combustion system is always present, guaranteeing even higher performance and certified yields up to 87.9%. This extraordinary achievement has allowed the new STP to fall within the limits set by the environmental certification (D.M. 186/2017) obtaining 4 stars. Also the fumes circuit has been renewed, which is now double and is able to offer uniform oven cooking. Externally we find a completely renewed, more modern and appealing design, which uses new precious finishes in hand-made majolica and serpentine stone; a brand new glass keypad with touch controls; new handles in precious wood and satin steel that give a more refined design; a wood box with a push-pull opening system. Finally many improvements also in the oven, which now has a brand new lighting system, double glazing and a new thermometer. The STP Series is equipped with numerous plant components including: circulation pump, electronic control unit, integrated safety system, level switch, flow switch, double stainless steel coils.

Thermo-cooker of exceptional performances stands out because it can produce hot water both for the heating system and the domestic circuit.

configura Configurator
Partners

Technical Specifications

    • Sistema di combustione certificato H2O System®
    • Height*: 850 mm (excluding upstand 40x15mm - HxD)
    • Regolazione automatica aria primaria - Air Control®
    • Aria secondaria preriscaldata
    • Presa d’aria esterna - External Air®
    • Porta fuoco con doppio vetro e sistema Shiny Glass®
    • Porta fuoco e cenere a chiusura ermetica
    • Carico legna variabile con sistema di alzagriglia
    • Cassa legna con apertura push-pull
    • Piastra radiante in acciaio ad alto rendimento
    • Fianchi aerati a convenzione termica naturale
    • Corrimano frontale
    • Porta forno con doppio vetro
    • Forno in acciaio inox
    • Forno con griglia e valvola di eccesso vapore
    • Forno con illuminazione elettrica e termometro
    • Teglia in smalto pirolitico su guide telescopiche
    • Centralina in vetro con comandi touch
    •  Centralina di controllo con segnali acustici
    • Produzione istantanea di acqua calda sanitaria
    • Sistema di sicurezza integrato a vaso aperto
    • Sistema di scambio termico a doppie serpentine
    • Pompa per il circuito di riscaldamento
    • Flussostato di prevalenza su circuito sanitario
    • Livellostato per il controllo livello acqua caldaia
    • Valvola di sfiato automatica
    • Pronta per l’installazione a vaso chiuso

Technical Data

    • Length: 1050 mm
    • Total Nominal Power: 11,3-30,7 kW
    • Height*: 850 mm
    • Water Nominal Power: 6,5-20,3 kW
    • Width: 600 mm
    • Heating Nominal power: 4,7-10,4 kW
    • Size of the Oven (lxhxw): 300x279x430 mm
    • Nominal Power Performance: 80,3-70,2%
    • Weight (Standard/Dekor): 335/350 kg

Configure your product

Rizzoli has a valid tool to make your ideas come true: customize the model with a range of choices and options by request* available online. And if you want to give an extra personal touch, come and see us or write to us: we have many other options to show you to build your custom kitchen!
You can download a pdf of the project as a reminder or send it directly to the company for further information.
*Options by request have an additional cost compared to the price of the standard model. If you choose a standard product there are no additional costs.

Rizzoli is constantly improving its products. For this reason, the technical and aesthetic characteristics of this configurator may change without previous notice. Thanks to the wide possibility of aesthetic and constructive customization of the product, in addition to the range choices and options by request, other customizations that cannot be displayed in the configurator are possible (after feasibility check).
