Wood-burning thermo-cookers > ST Range

Wood-burning thermo-cookers

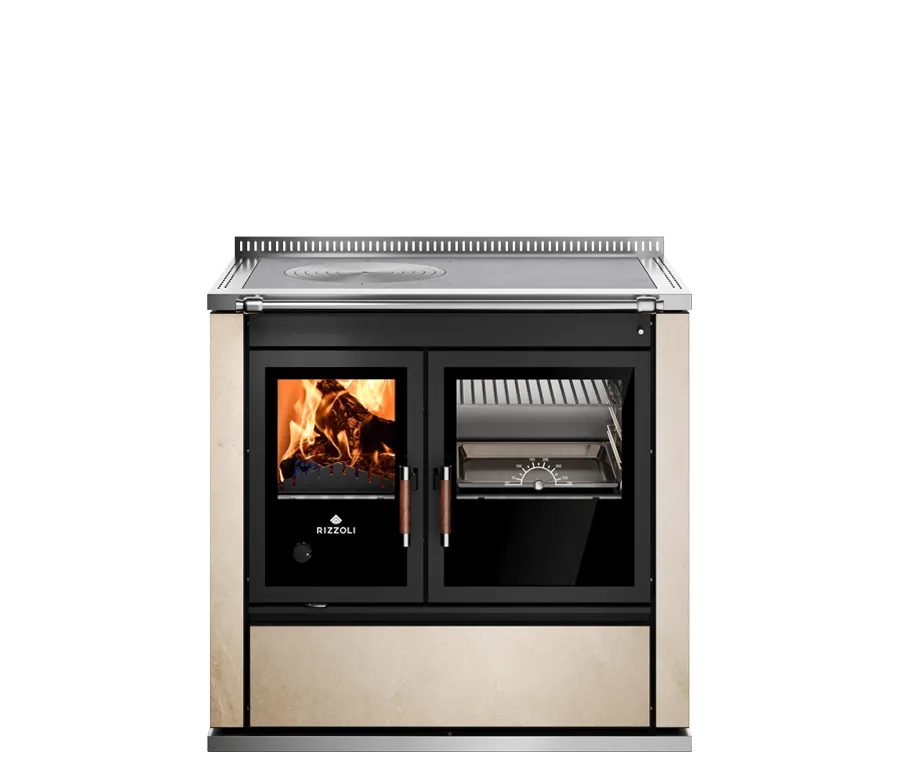

ST 90 Gres

with oven

Other models

Wood-burning thermo-cookers

ST 90 Gres

with oven

The wood-burning thermo-cookers of this range enjoy a wide view of the fire, thanks to the fire door with double glass and Shiny Glass® system, and implement the exclusive H2O System® certified combustion system with steel bulkheads that protect the boiler body. The special porcelain Gres cladding makes them perfect for free-standing installation: it gives an up-to-date, exciting style, rich in chromatic and material effects, able to make the steel stand out. These thermos-cookers are complete with stainless steel oven with thermometer, lighting, pan on telescopic guides, grate, valve for excess steams.

Configure your wood burning cooker and discover the many customizations and aesthetic variations.

Your freestanding wood-burning cooker. It goes well both with modern and classic home furnishings, also with thanks to a very wide choice of colours and finishes.

Technologies

Thermal Exhaust System

H2O System

6 Years Warranty

Steel structure

External Air

Eco manifacture

Air Control

Shiny Glass

Configurator

Certifications

Technical Data

Documents

CE Certification

Art 15a B-VG Certification

BIMSCHV Certification

Équivalent Flamme Verte 7*

VFK

Energy label

Eco Design 2022

Certificazione ambientale 5 stelle Rizzoli cucine

Environmental Certification: 5 Stars

Partners

HKI

Technical Specifications

H₂O System Certified combustion system
Height*: 850 mm (excluding upstand 40x15mm - HxD)
Steel or Glass ceramic radiant plate
Vent to the Outside
Airtight Fire Door
Self-cleaning Double-Glazed Ceramic Glass Fire Door
High thickness steel boiler
Stainless steel boiler protection
Predisposition for thermal discharge
Boiler water temperature thermometer
Primary and Secondary Air automatic regulation
Pre-heated Secondary Air
Ignition with Bypass Key
Regulation/Closing of vent to the outside
Insulated Handles
Handrail on Three Sides
Stainless Steel Oven
Side-opening Glass Oven Door
Oven with Light and Thermometer
Oven with Steam-conditioning valves
Pyrolytic coated baking tray on Telescopic rails and Oven grill grid
Natural thermal convection on the sides
Furniture for Built-in Appliances

Technical Data

Length: 900 mm
Height*: 850 mm
Width: 600 mm
Size of the Oven (lxhxw): 350x279x430 mm
Total Nominal Power: 11,3-23,8 kW
Water Nominal Power: 6,5-13,4 kW
Heating Nominal power: 4,7-10,5 kW
Nominal Power Performance: 80,3-77,0 %
Weight: 270 Kg

Documents

Download the pdf files related to the series

Pluses of the Range

General Catalogue

Declaration of Thermal Performance

Configure your product

Rizzoli has a valid tool to make your ideas come true: customize the model with a range of choices and options by request* available online. And if you want to give an extra personal touch, come and see us or write to us: we have many other options to show you to build your custom kitchen!
You can download a pdf of the project as a reminder or send it directly to the company for further information.
^*Options by request have an additional cost compared to the price of the standard model. If you choose a standard product there are no additional costs.

Rizzoli is constantly improving its products. For this reason, the technical and aesthetic characteristics of this configurator may change without previous notice. Thanks to the wide possibility of aesthetic and constructive customization of the product, in addition to the range choices and options by request, other customizations that cannot be displayed in the configurator are possible (after feasibility check).
