Wood-burning thermo-cookers

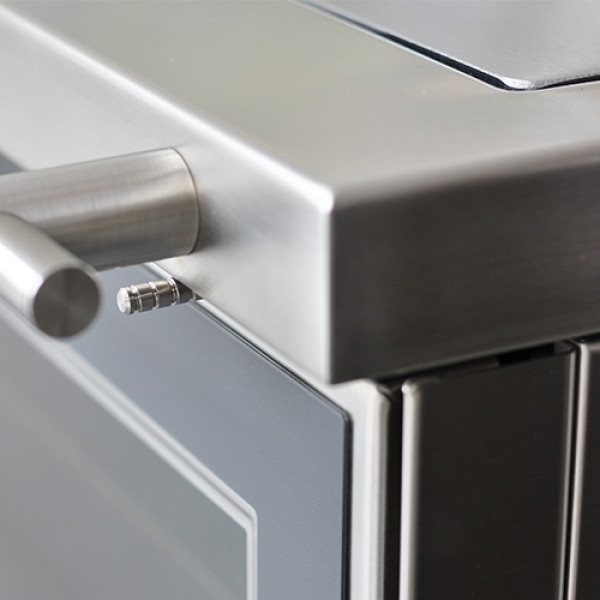

RTVE 90

with oven

Designed for a refined and modern customer that won’t do without the sight of the fire through the special triple-glazed glass door. Thanks to the innovative certified combustion system H2O System®, the combustion chamber is fully covered in steel to protect the body of the boiler. Moreover, the wood burns more effectively, giving better performances, less wood consumption and emissions.

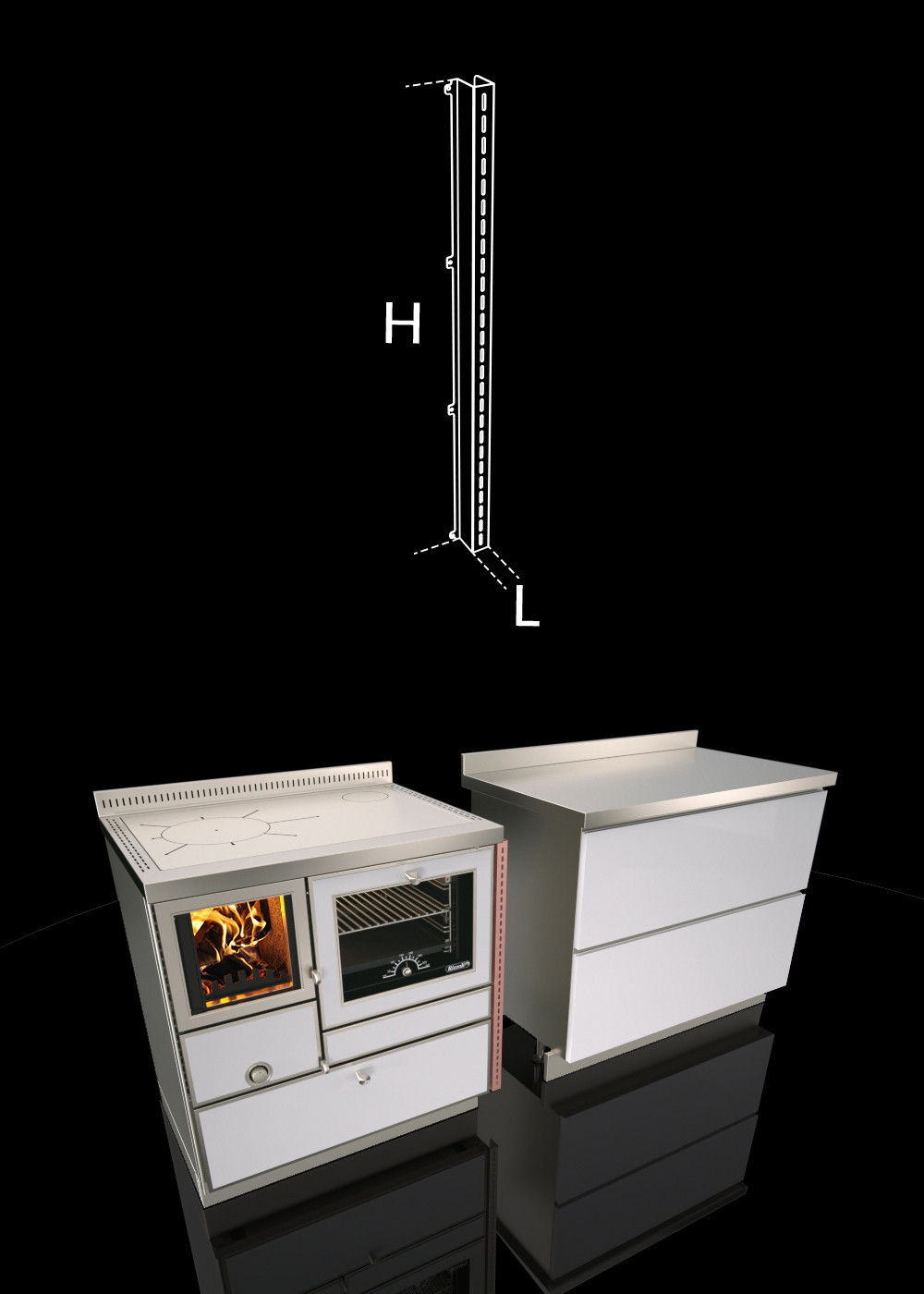

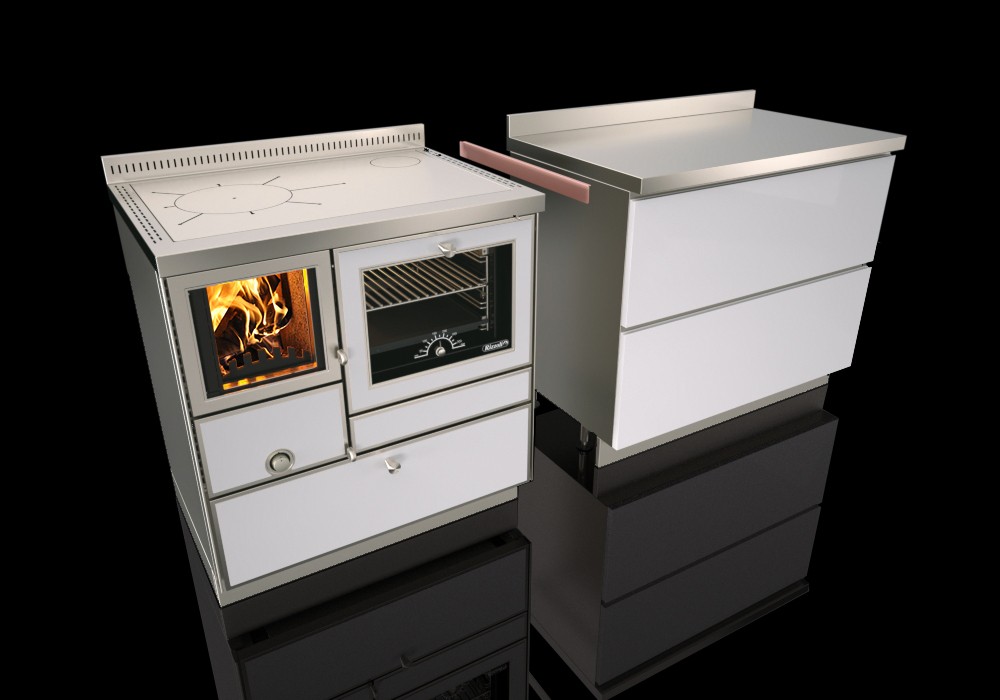

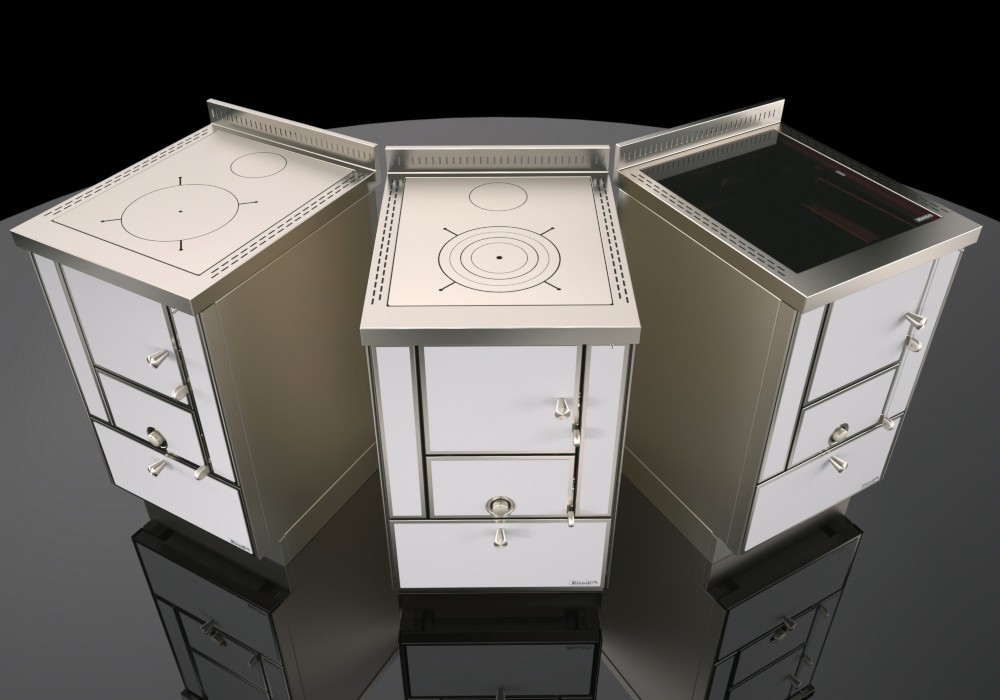

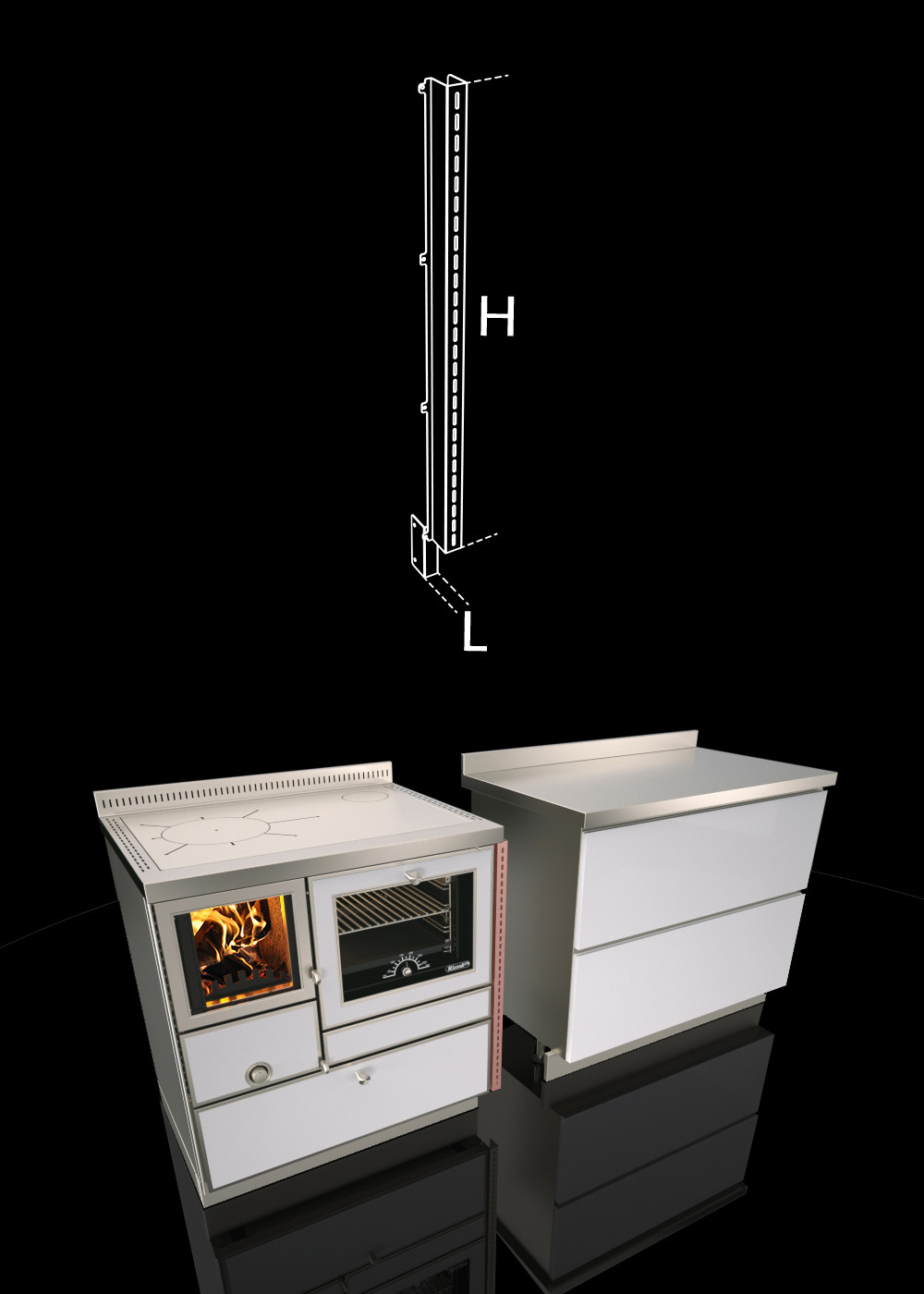

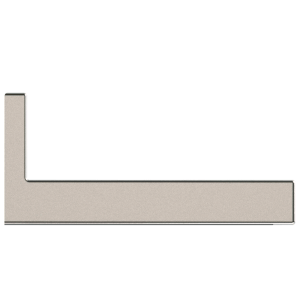

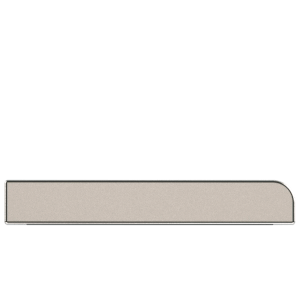

The wood-burning thermo-cookers in the RT range guarantee a perfect alignment and installation in the furniture. As you can choose the height of the wood-burning cooker, the thickness, and the edge of the top.
Browse our catalogue and discover our many customizations and aesthetic variations.

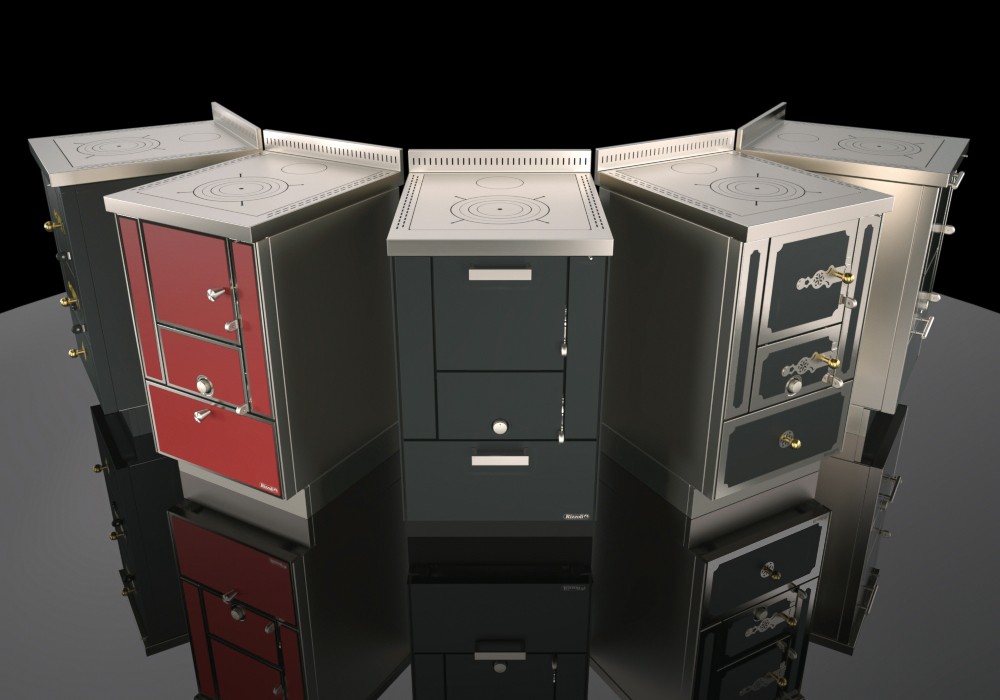

It’s the “classic” range by Rizzoli. Thanks to the wide possibility of customization, this range’s wood-burning thermo-cookers are the perfect solution to be integrated into already existing furniture.

Technologies

Thermal Exhaust System

6 Years Warranty

H2O System

Steel structure

External Air

Eco manifacture

Air Control

Shiny Glass

Configurator

Certifications

Technical Data

Documents

CE Certification

Art 15a B-VG Certification

BIMSCHV Certification

Équivalent Flamme Verte 7*

VFK

Energy label

Certificazione ambientale 5 stelle Rizzoli cucine

Environmental Certification: 5 Stars

Eco Design 2022

Partners

HKI

Technical Specifications

H₂O System Certified combustion system

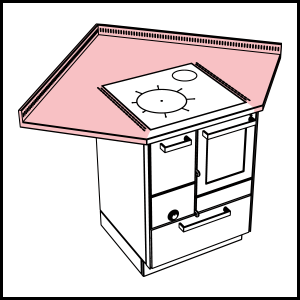

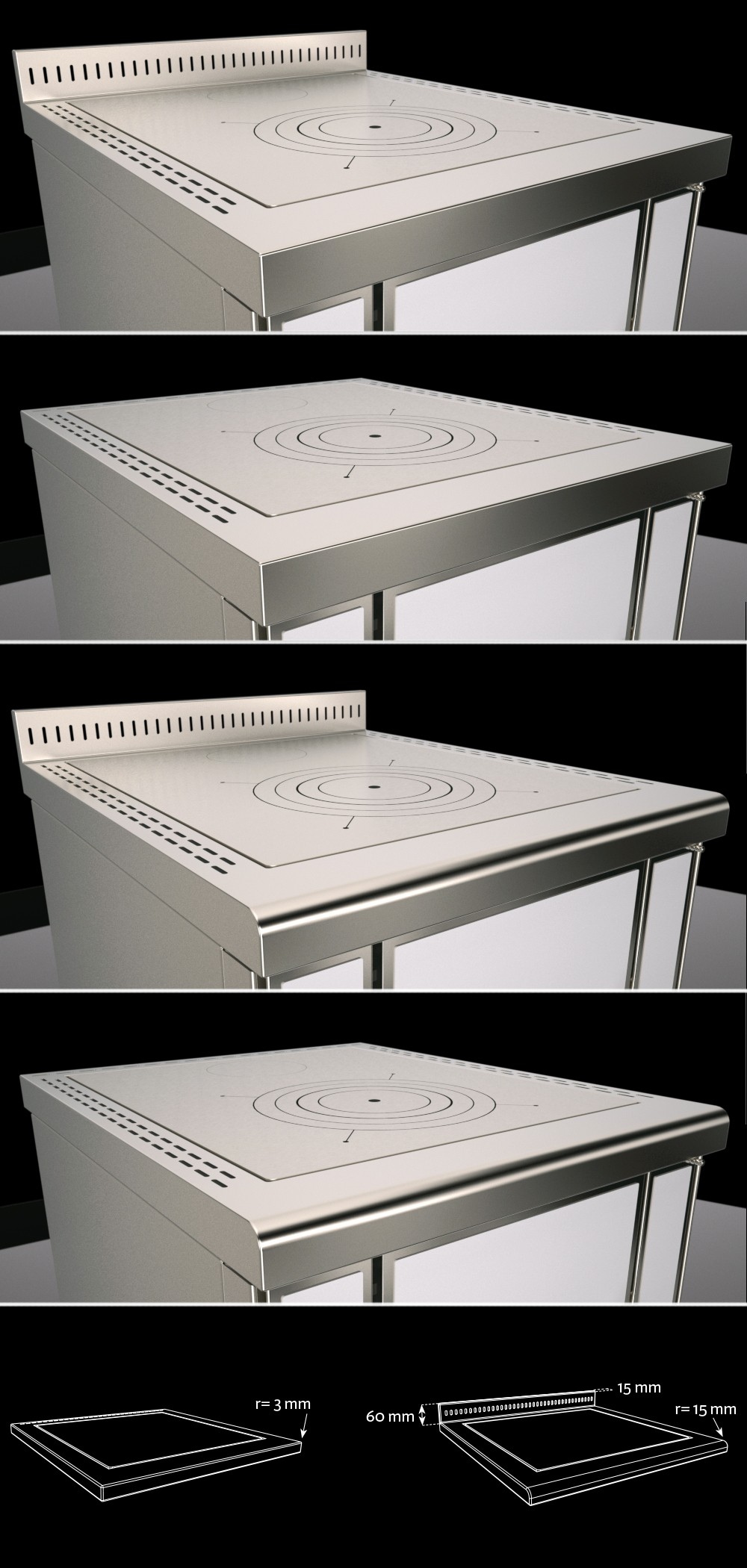

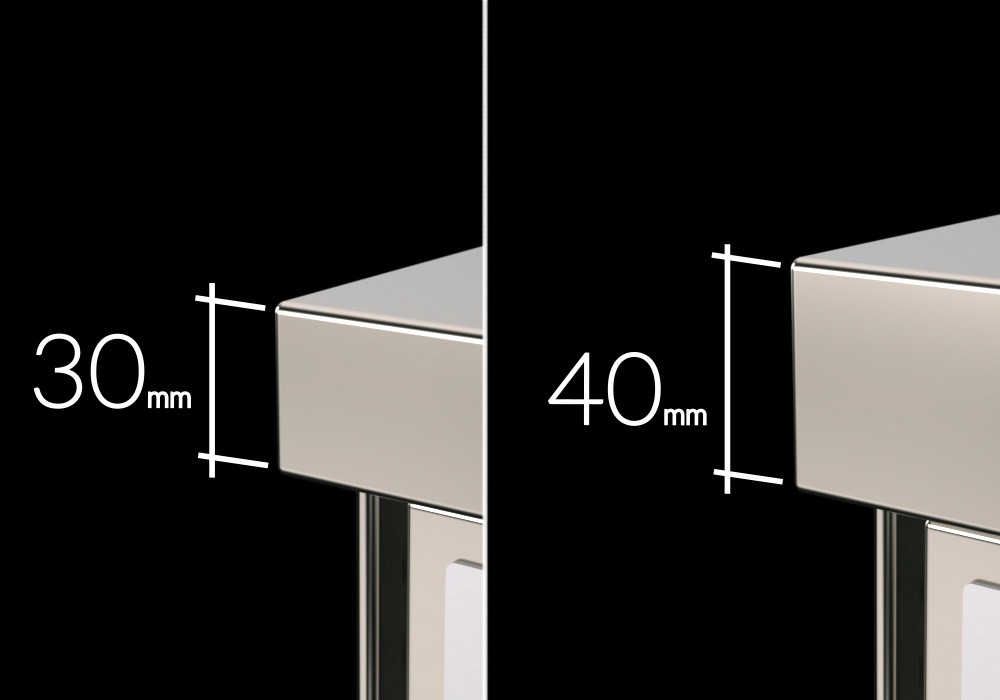

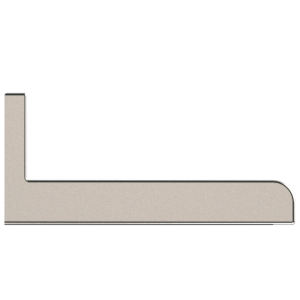

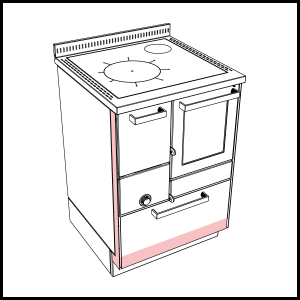

Height Kitchen*: 850 - 860 mm (excluding upstand 60x15mm - HxD)

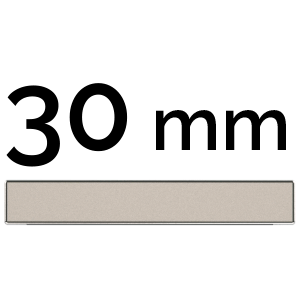

- with 30 mm thick top: height 850 mm
- with 40 mm thick top: height 860 mm

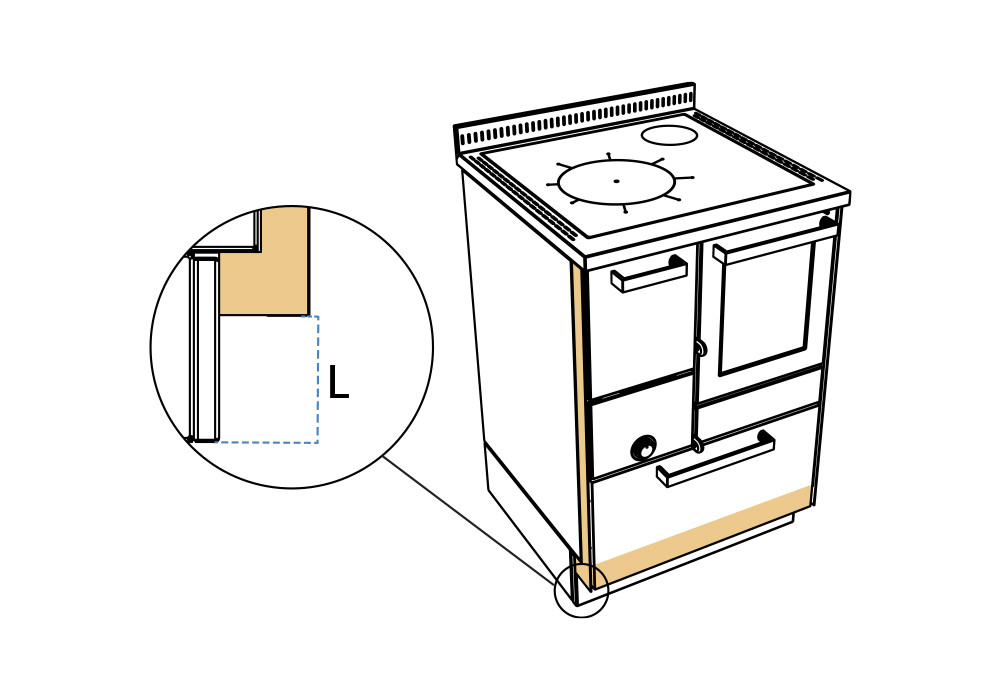

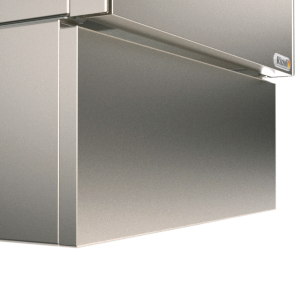

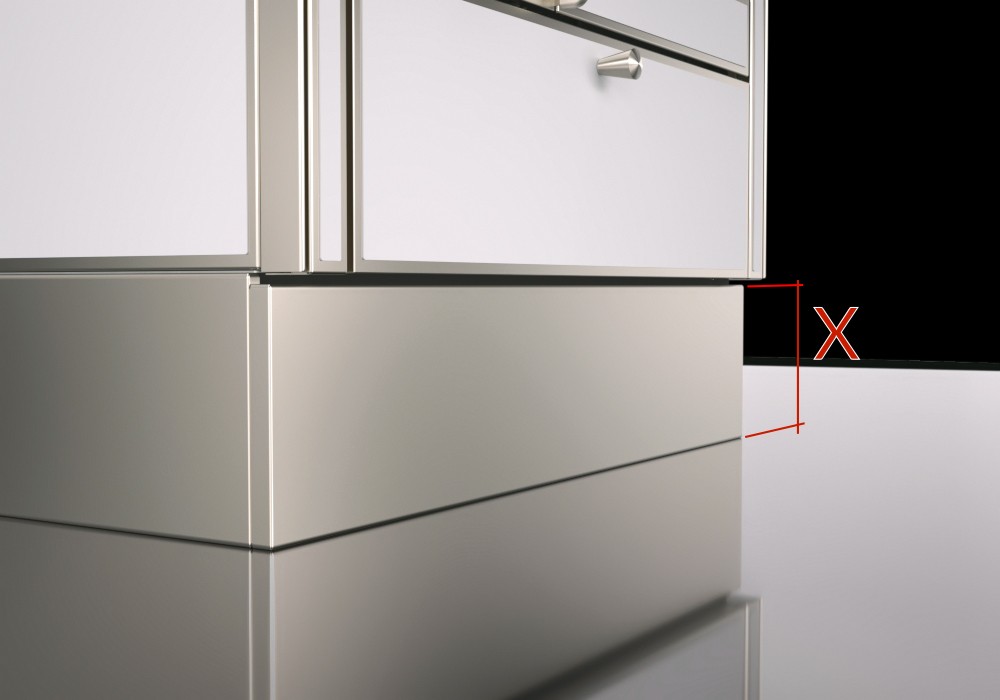

Height and Width Adjustable Plinth

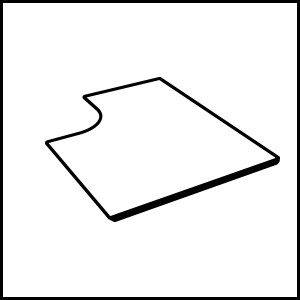

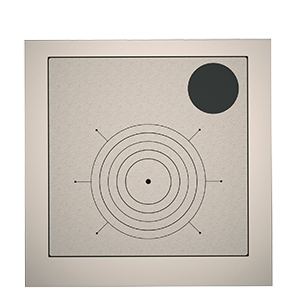

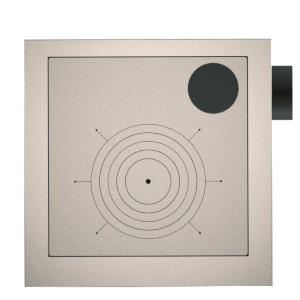

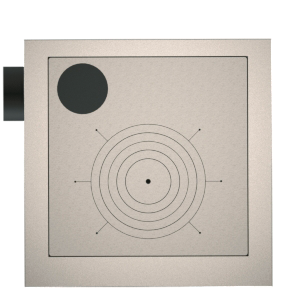

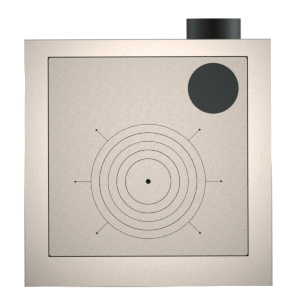

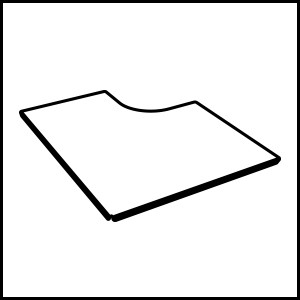

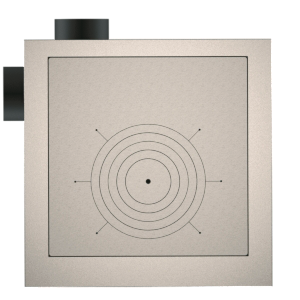

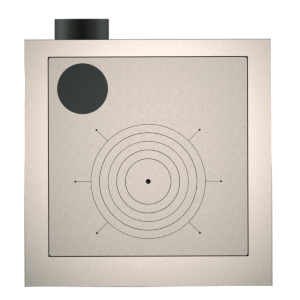

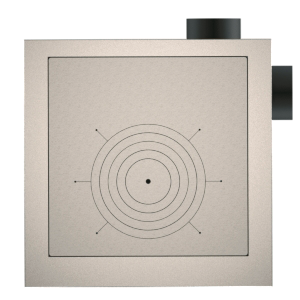

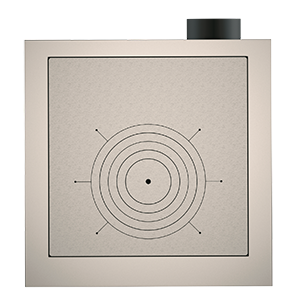

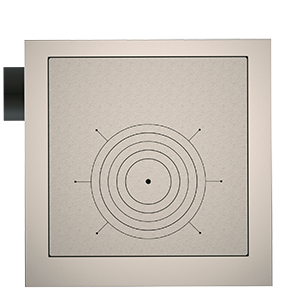

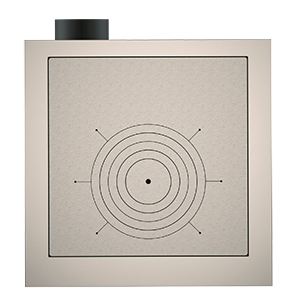

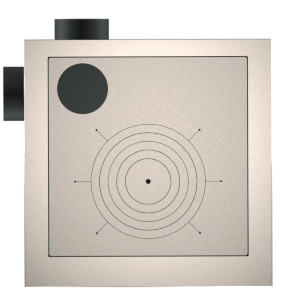

Horizontally and vertically adjustable rear flue outlet
Soft close wood cushioned box

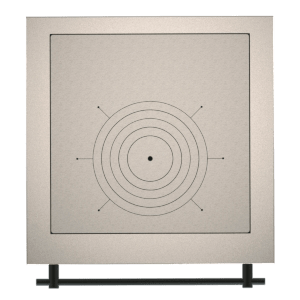

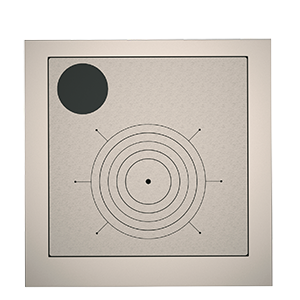

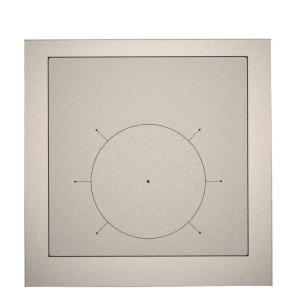

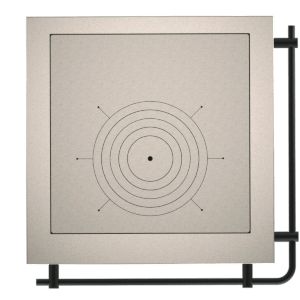

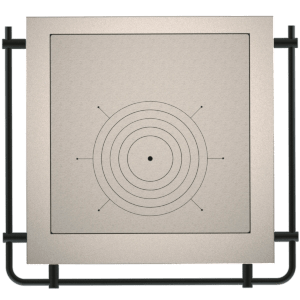

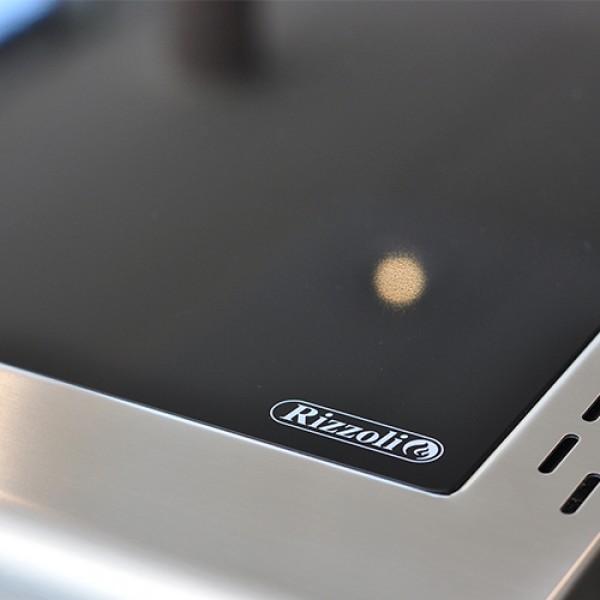

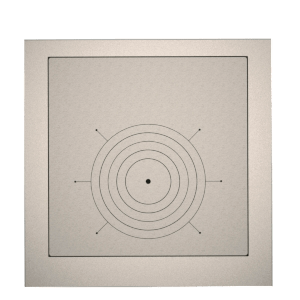

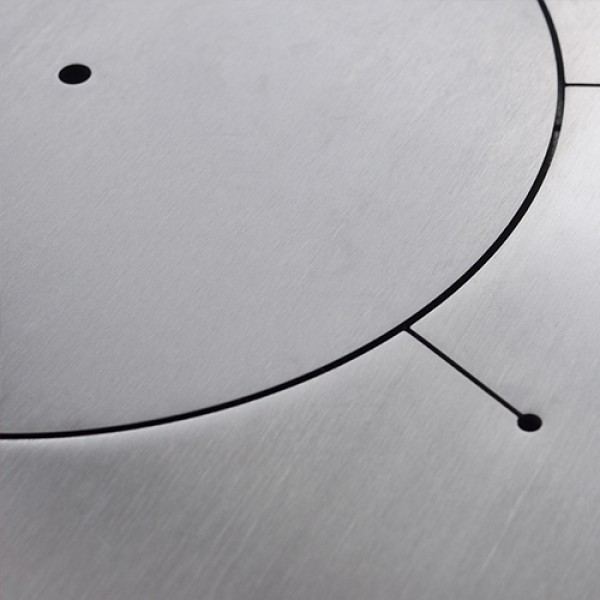

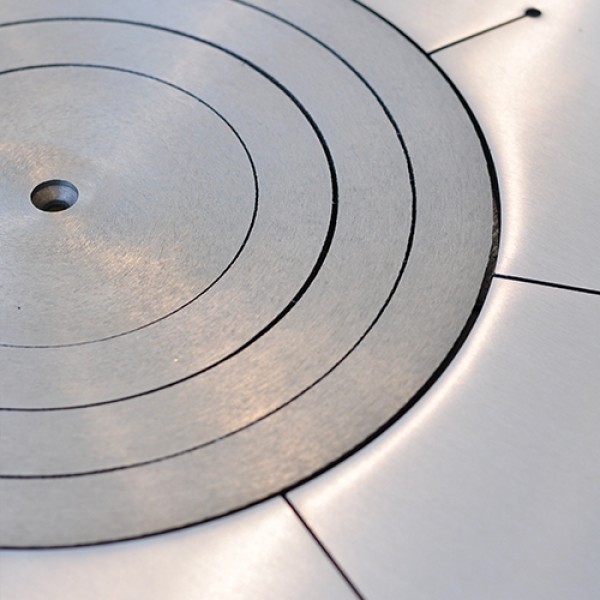

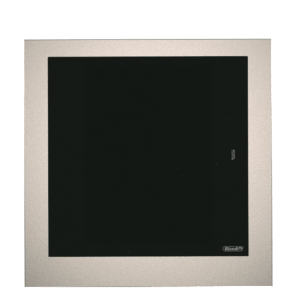

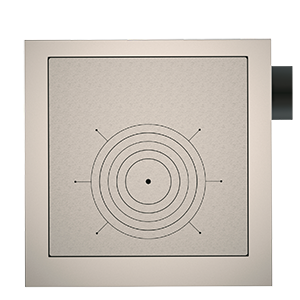

Steel or Glass ceramic radiant plate
Vent to the Outside

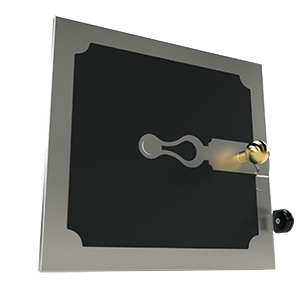

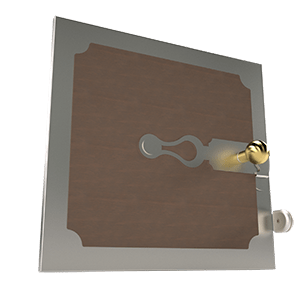

Airtight Fire Door
Self-cleaning triple-glazed ceramic glass fire door
High thickness steel boiler
Stainless steel boiler protection
Adjustable height wood loading
Predisposition for thermal discharge

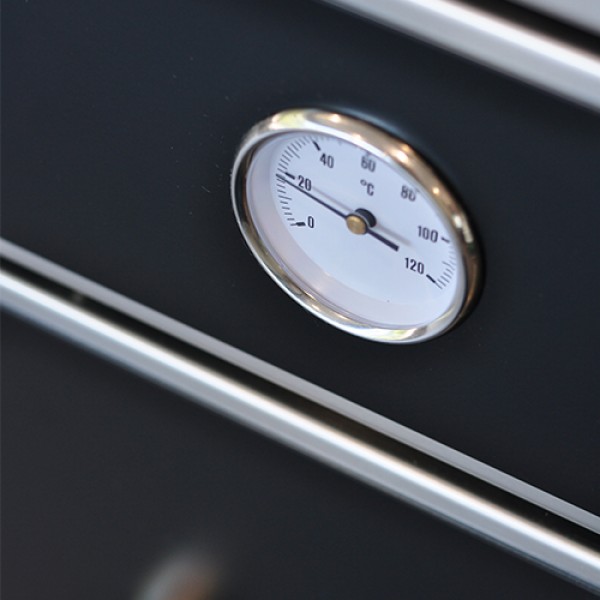

Boiler water temperature thermometer
Primary and Secondary Air automatic regulation
Pre-heated Secondary Air
Ignition with Bypass Key
Regulation/Closing of vent to the outside
Quick-release oven door with double-glazed glass
Oven with Light and Thermometer
Oven with Steam-conditioning valves
Oven with Pyrolytic Coating

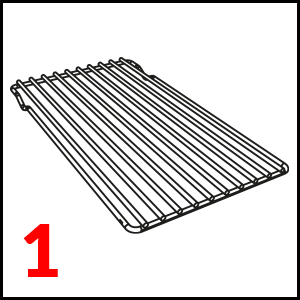

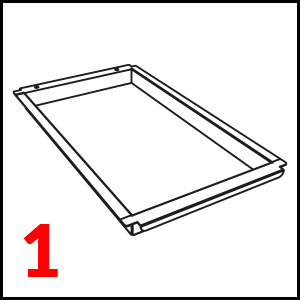

Pyrolytic coated baking tray on Telescopic rails and Oven grill grid
Natural thermal convection on the sides
Furniture for Built-in Appliances

Technical Data

Length: 900 mm
Height*: 850 - 860 mm
Width: 600 mm
Size of the Oven (lxhxw): 450x260x430 mm
Total Nominal Power: 11,3-22,3 kW
Water Nominal Power: 5,8-15,1 kW
Heating Nominal power: 4,7-7,1 kW
Nominal Power Performance: 80,1-75,7 %
Weight: 270 Kg

Documents

Download the pdf files related to the series

Pluses of the Range

General Catalogue

Energy Labelling - Product Sheet

Energy Labelling - Label

DOP

Declaration of Thermal Performance

Technical Data Sheet

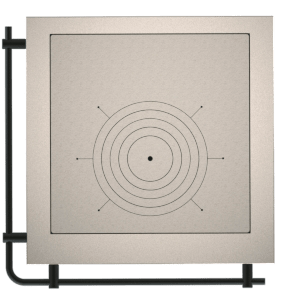

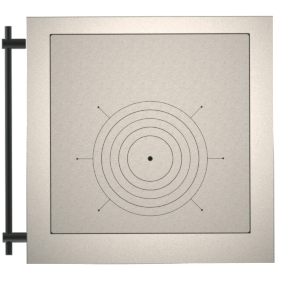

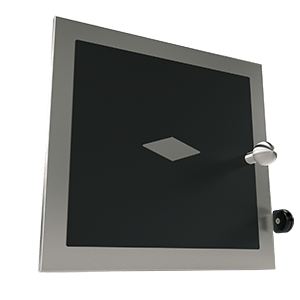

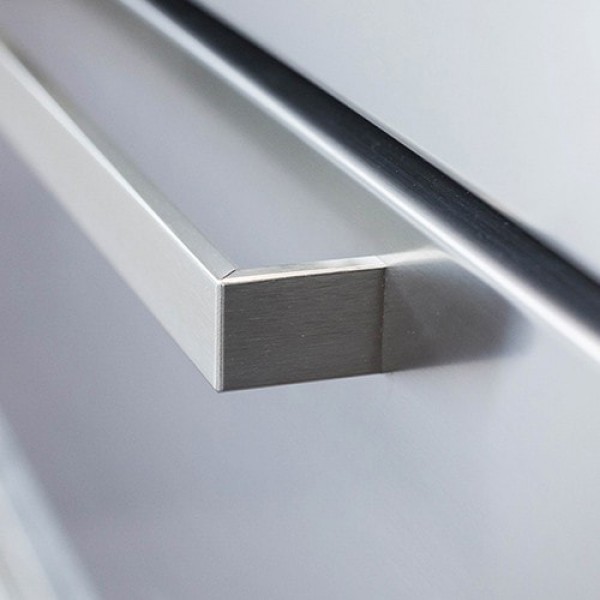

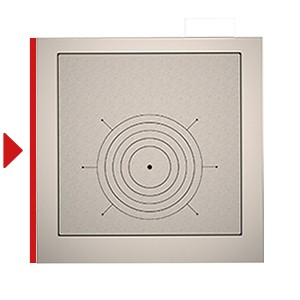

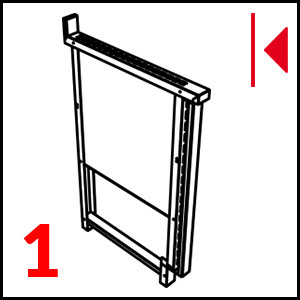

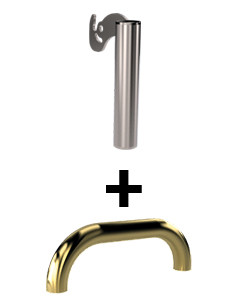

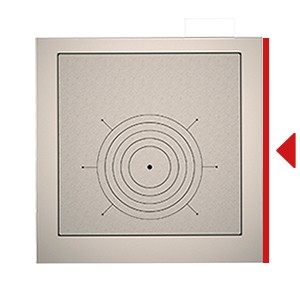

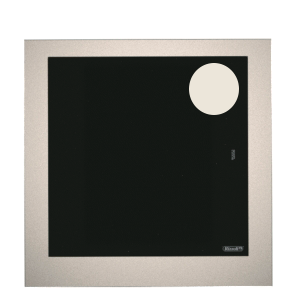

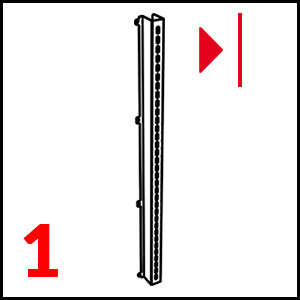

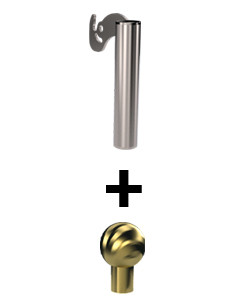

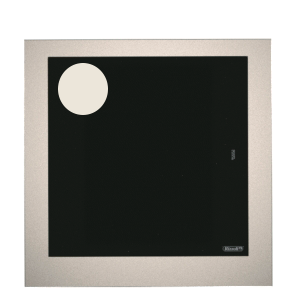

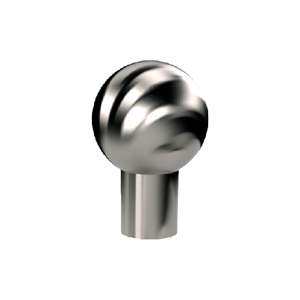

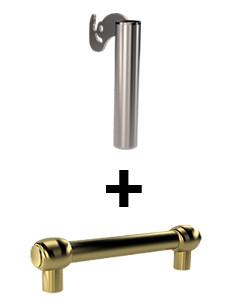

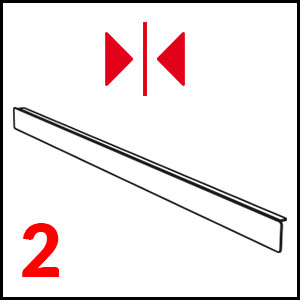

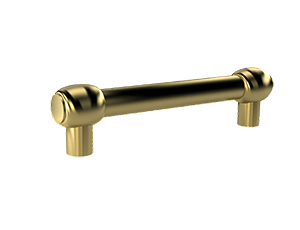

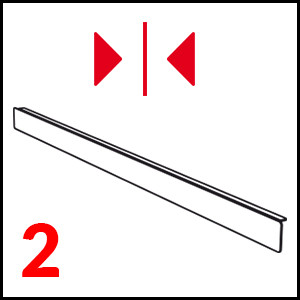

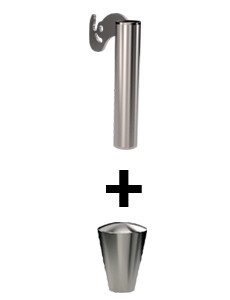

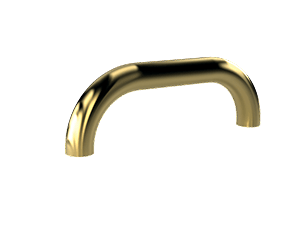

Configure your product

Rizzoli has a valid tool to make your ideas come true: customize the model with a range of choices and options by request* available online. And if you want to give an extra personal touch, come and see us or write to us: we have many other options to show you to build your custom kitchen!
You can download a pdf of the project as a reminder or send it directly to the company for further information.
^*Options by request have an additional cost compared to the price of the standard model. If you choose a standard product there are no additional costs.

Rizzoli is constantly improving its products. For this reason, the technical and aesthetic characteristics of this configurator may change without previous notice. Thanks to the wide possibility of aesthetic and constructive customization of the product, in addition to the range choices and options by request, other customizations that cannot be displayed in the configurator are possible (after feasibility check).
