Wood-burning thermo-cookers

RTE 60

without oven

RTE 60
Wood-burning thermo-cookers
RTE 60

without oven

All of Rizzoli technology in a tiny space. Thanks to the innovative certified H2O System combustion system, the combustion chamber is fully covered in steel to protect the body of the boiler. Moreover, the wood burns more effectively, giving better performances, less wood consumption and emissions.
The wood-burning thermo-cookers in the RT range guarantee a perfect alignment and installation in the furniture. As you can choose the height of the wood-burning cooker, the thickness, and the edge of the top.
Browse our catalogue and discover our many customizations and aesthetic variations.

It’s the “classic” range by Rizzoli. Thanks to the wide possibility of customization, this range’s wood-burning thermo-cookers are the perfect solution to be integrated into already existing furniture.

configura Configurator
Partners

Technical Specifications

    • H2O System Certified combustion system
    • Height Kitchen*: 850 - 860 mm (excluding upstand 60x15mm - HxD)
      • with 30 mm thick top: height 850 mm
      • with 40 mm thick top: height 860 mm
    • Height and Width Adjustable Plinth
    • Horizontally and vertically adjustable rear flue outlet
    • Soft close wood cushioned box
    • Steel or Glass ceramic radiant plate
    • Vent to the Outside
    • Airtight Fire Door
    • High thickness steel boiler
    • Stainless steel boiler protection
    • Adjustable height wood loading
    • Predisposition for thermal discharge
    • Boiler water temperature thermometer
    • Primary and Secondary Air automatic regulation
    • Pre-heated Secondary Air
    • Ignition with Bypass Key
    • Regulation/Closing of vent to the outside
    • Natural thermal convection on the sides
    • Furniture for Built-in Appliances

Technical Data

    • Length: 600 mm
    • Total Nominal Power: 5,7-18,6 kW
    • Height*: 850 - 860 mm
    • Water Nominal Power: 2,6-8,5 kW
    • Width: 600 mm
    • Heating Nominal power: 3,1-10,1 kW
    • Nominal Power Performance: 83,2-79%
    • Weight: 210 Kg

Configure your product

Rizzoli has a valid tool to make your ideas come true: customize the model with a range of choices and options by request* available online. And if you want to give an extra personal touch, come and see us or write to us: we have many other options to show you to build your custom kitchen!
You can download a pdf of the project as a reminder or send it directly to the company for further information.
*Options by request have an additional cost compared to the price of the standard model. If you choose a standard product there are no additional costs.

Rizzoli is constantly improving its products. For this reason, the technical and aesthetic characteristics of this configurator may change without previous notice. Thanks to the wide possibility of aesthetic and constructive customization of the product, in addition to the range choices and options by request, other customizations that cannot be displayed in the configurator are possible (after feasibility check).

zoom out

Range Choice

Finish info

Handles info

Knobs info

dettaglio Inox
dettaglio Brass

Stainless Steel side info

Plate info

Top info

Stainless Steel black side (P54) info

Flue outlet Conflitto

Top thickness Conflitto

dettaglio 30 mm
dettaglio 40 mm

On Demand Options

Glass ceramic plate for upper flue outlet right info

Top on measure info

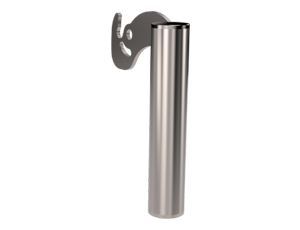

dettaglio Yes

Handles info

Side with finish info

Side with finish info

PRO door opening info

PRO door opening info

dettaglio + Stainless Steel knob
dettaglio + Brass knob

Knobs info

Handrail info

Spacer (Standard) info

dettaglio Left + Right Spacer
dettaglio Right Spacer
dettaglio Left Spacer
dettaglio Left + Right Spacer Epoka
dettaglio Right Spacer Epoka
dettaglio Left Spacer Epoka
dettaglio Left + Right Spacer Variant
dettaglio Right Spacer Variant
dettaglio Left Spacer Variant

Spacer (bespoke) info

dettaglio Left + Right Spacer
dettaglio Right Spacer
dettaglio Left Spacer
dettaglio Left + Right Spacer Epoka
dettaglio Right Spacer Epoka
dettaglio Left Spacer Epoka
dettaglio Left + Right Spacer Variant
dettaglio Right Spacer Variant
dettaglio Left Spacer Variant

Top section bar (Standard) info

dettaglio Left + Right Top section bar
dettaglio Right Top section bar
dettaglio Left Top section bar

Top section bar (bespoke) info

dettaglio Left + Right Top section bar
dettaglio Right Top section bar
dettaglio Left Top section bar

Lateral connections info

dettaglio Lateral connections

Custom-made plinth Conflitto

dettaglio H. (mm)
Write measure X

Lowered front Conflitto

dettaglio H.mm
Write measure L

Multi-fume Conflitto

dettaglio Multi-fume on the right
dettaglio Multiple Flue Outlet up + dx
dettaglio Multiple Flue Outlet behind + dx
dettaglio Multiple Flue Outlet behind + sx
dettaglio Multiple Flue Outlet up + sx
dettaglio Multi-fume on the left

RAL Colour Conflitto

dettaglio RAL
Add Code

Fin from 20 to 100 mm without plinth Conflitto

dettaglio Stainless steel L.+R. (LxH) mm
Write measure L x H
dettaglio Stainless steel R. (LxH) mm
Write measure L x H
dettaglio Stainless steel L. (LxH) mm
Write measure L x H
dettaglio Black L.+R. (LxH) mm
Write measure L x H
dettaglio Black R. (LxH) mm
Write measure L x H
dettaglio Black L. (LxH) mm
Write measure L x H

Fin from 20 to 100 mm with plinth Conflitto

dettaglio Stainless steel L.+R. (LxH) mm
Write measure L x H
dettaglio Stainless steel R. (LxH) mm
Write measure L x H
dettaglio Stainless steel L. (LxH) mm
Write measure L x H
dettaglio Black L.+R. (LxH) mm
Write measure L x H
dettaglio Black R. (LxH) mm
Write measure L x H
dettaglio Black L. (LxH) mm
Write measure L x H

Accessories

Plate cover (not available for glass-ceramic plate) info

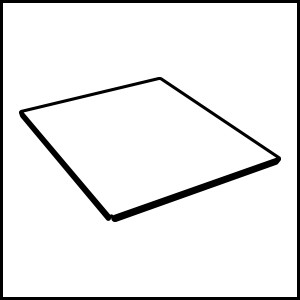

dettaglio Plate cover

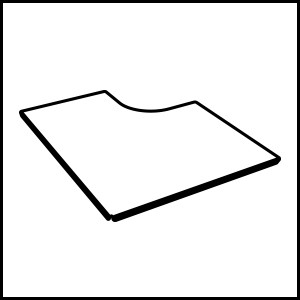

dettaglio Flue outlet for up on the right

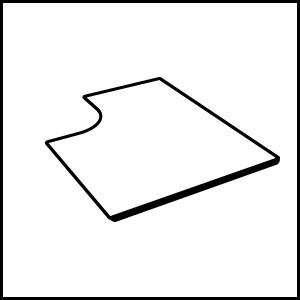

dettaglio Flue outlet for up on the left
