In those cases where a natural draught hood already exists or if the hood is made by a craftsman, a complete suction hood may not be necessary.

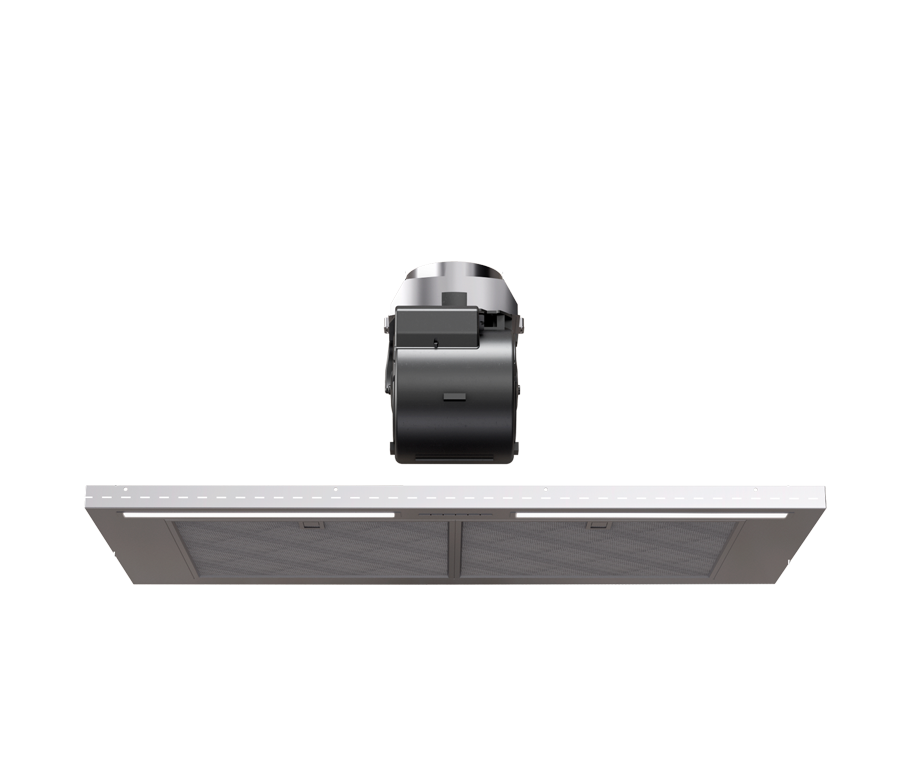

Rizzoli offers dedicated installation kits comprising a panel fitted with filters, a LED lighting system, a separate suction unit with all the wiring pre-assembled and a control system.


This panel is designed for situations in which a complete kitchen hood is not necessarily needed. The panel can be installed in a specially designed natural draught hood.

Partners

Technical Specifications

    • Installation: built-in
    • Cladding: Stainless steel
    • Ducted or air recirculation version
    • Controls: mechanical control panel
    • Timer function
    • Lighting: with LED bars
    • Dishwasher-safe filters
    • Resistant to high temperatures
    • Remote control (optional)
    • Extraction rate: 910 m3/h
    • Noise level: 60 dB
    • Power consumption: from 294.8 to 308.2 W
    • Speed settings: 4
    • Outlet: ø 150 mm






Technical Data

PN6

PN6
A from 350 to 600 mm
B from 290 to 700 mm
C(1) 30 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power ( (W) 4,8 W

(1) Including bent sheet metal for external fastening.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).



PN8

PN8
A from 601 to 800 mm
B from 290 to 700 mm
C(1) 30 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power ( (W) 6,7W

(1) Including bent sheet metal for external fastening.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).



PN9

PN9
A from 801 to 900 mm
B from 290 to 700 mm
C(1) 30 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power ( (W) 6,7 W

(1) Including bent sheet metal for external fastening.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).



PN12

PN12
A from 901 to 1200 mm
B from 290 to 700 mm
C(1) 30 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power ( (W) 9,6 W

(1) Including bent sheet metal for external fastening.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).



PN14

PN14
A from 1201 to 1400 mm
B from 290 to 700 mm
C(1) 30 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power ( (W) 9,6 W

(1) Including bent sheet metal for external fastening.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).



PN15

PN15
A from 1401 to 1500 mm
B from 290 to 700 mm
C(1) 30 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power ( (W) 9,6 W

(1) Including bent sheet metal for external fastening.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).



PN18

PN18
A from 1501 to 1800 mm
B from 290 to 700 mm
C(1) 30 mm
Ø outlet 150 mm
Max suction power (W) 290 W
LED Power ( (W) 13,4 W

(1) Including bent sheet metal for external fastening.

The dimensions in the table are purely indicative. Every hood is built to the dimensions and specifications provided by the customer (subject to feasibility check).
