Structure 90

One of the customizations available for the R range is the possibility to integrate the wood-burning cookers and thermo-cookers with a structure for the appliances that can be placed both on the left and right of them. The unit is also available as a single piece in three models: 60, 70, and 90 cm. Upon request, we create customized solutions.

These structures are designed to accommodate electric ovens and hobs of your choice. They have been designed to be paired with cookers and thermo-cookers of the R range.

Technical Specifications

    • Adjustable Height Kitchen*: 850 - 920 mm (excluding upstand 60x15mm - HxD)
      • with 30 mm thick top: height 850 - 910 mm
      • with 40 mm thick top: height 860 - 920 mm
    • Height and Width Adjustable Plinth

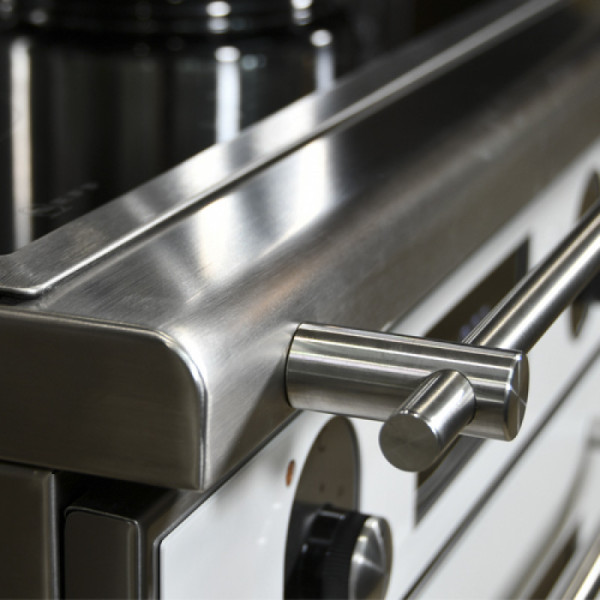

    • 30 or 40 mm Stainless Steel Top
    • Choice of appliances

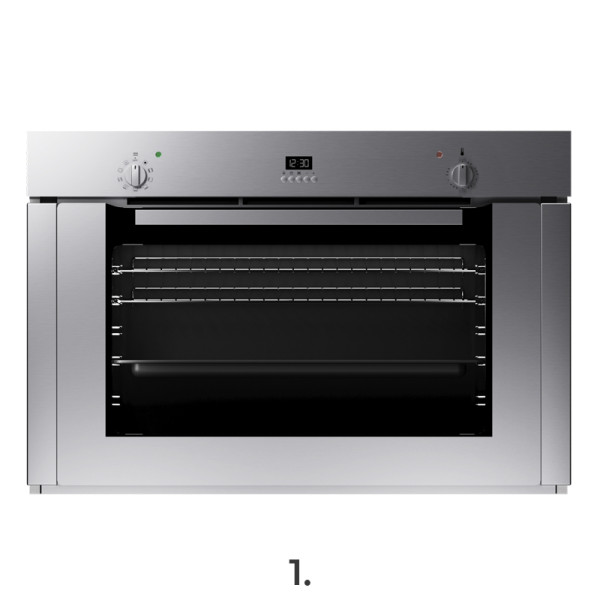

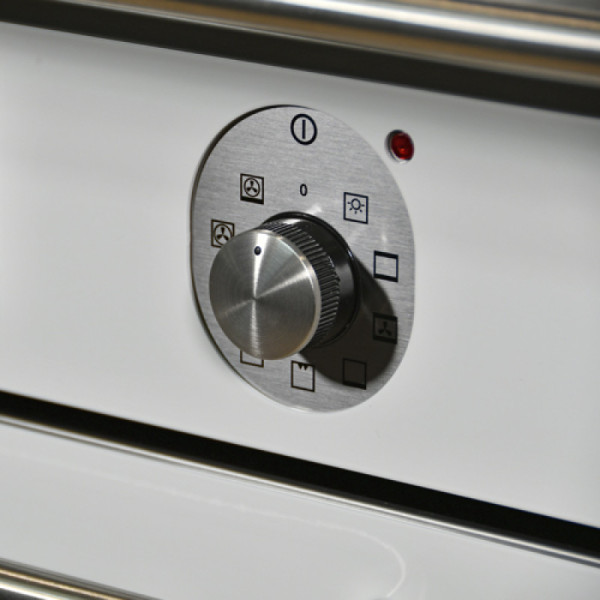

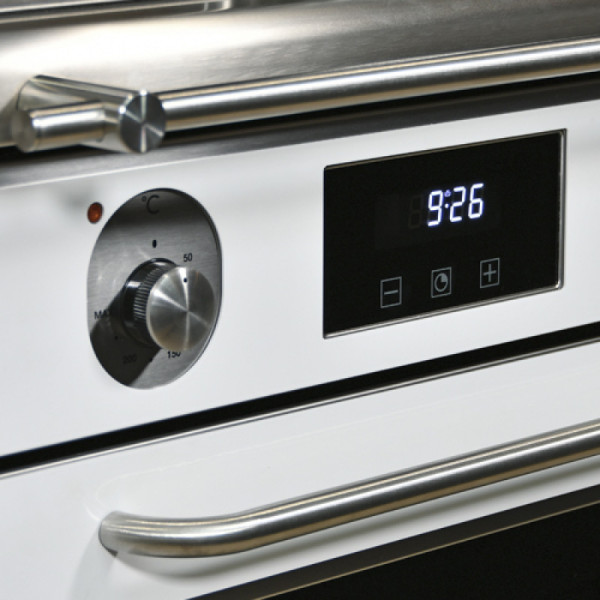

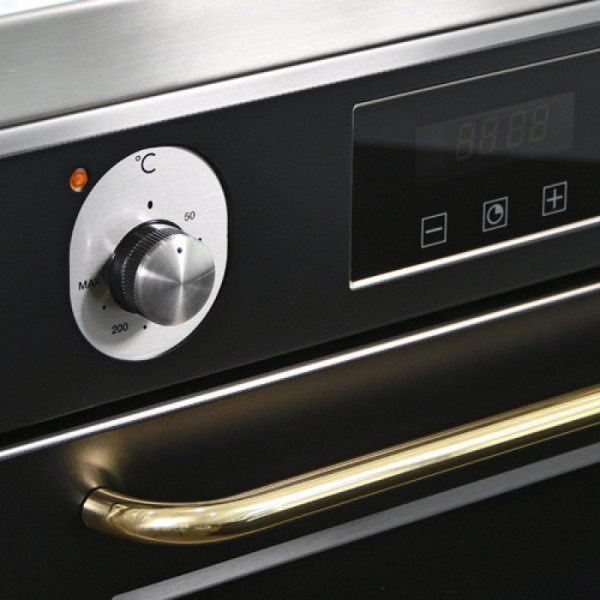

    • 1) Size 90 electric oven
    • 9 functions including defrosting
    • 110 litres of useful volume
    • Tangential cooling fan
    • Electronic programmer with display and touch controls
    • Cooling time adjustment and control
    • Spit rotisserie
    • Double internal light
    • Removable internal glazing for easy cleaning
    • Energy class: A

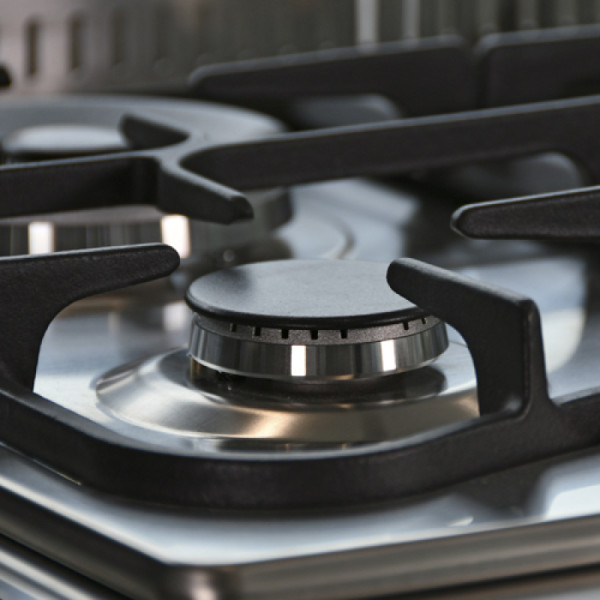

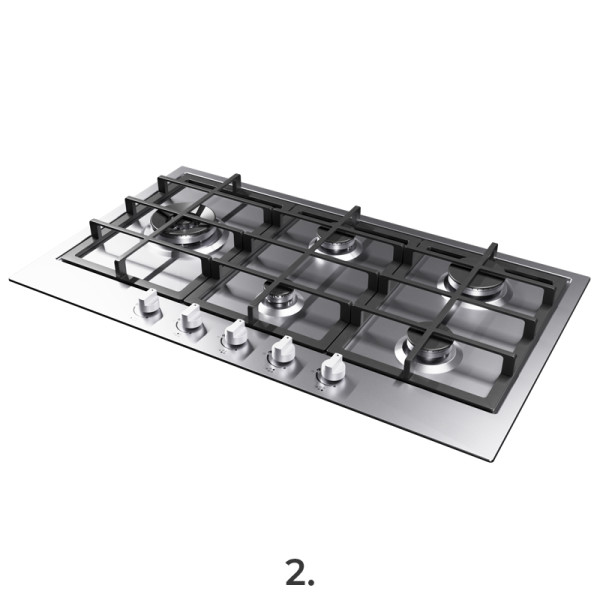

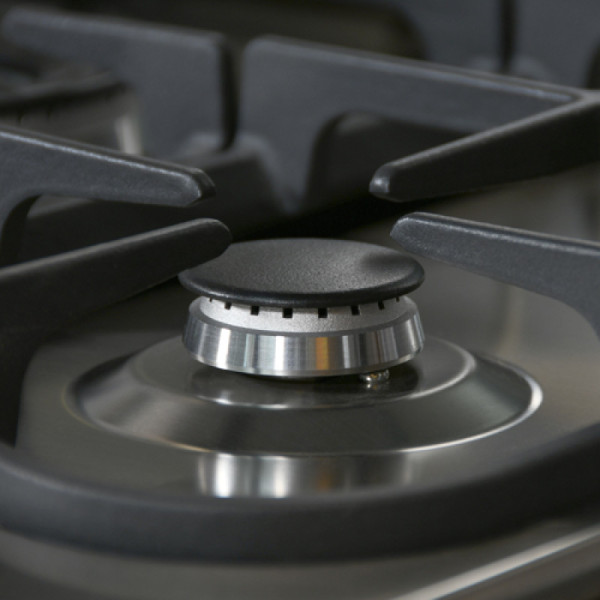

    • 2) Gas hobs (5 burners)
    • 1 triple flame burner
    • Safety valve
    • Cast iron pan supports
    • Electronic ignition

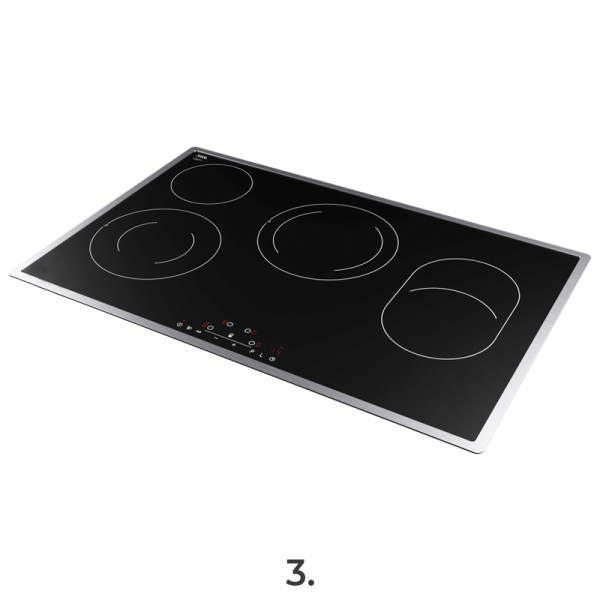

    • 3) Electric glass ceramic
    • 5 cooking zones
    • 3 double-diameter cooking zones
    • Touch Controls with timer
    • Automatic switch-off
    • 9 power levels
    • Residual heat indicator
    • Child safety lock

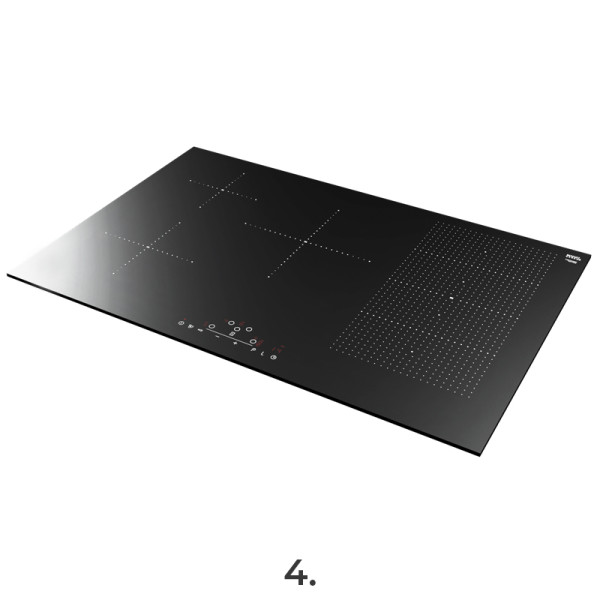

    • 4) Induction glass ceramic
    • 5 induction cooking zones
    • Electronic control with 17 levels
    • 1 flexible 400x200 mm cooking zone
    • Temperature level indicator
    • Touch Controls with timer
    • Residual heat indicator
    • Automatic safety shut-off
    • Power management function
    • Wipe Protection function
    • Minute minder

Technical Data

    • Length: 900 mm
    • Adjustable Height*: 850-920 mm
    • Width: 600 mm
    • Size 90 electric oven: 895x595 mm (LxH)
    • Gas hobs (5 burners): 860x510x50 mm (LxPxH)
    • Electric glass ceramic: 880x510x41(LxPxH)
    • Induction glass ceramic: 780x520x47 (LxPxH)
