Campanas extractoras > Ambiente
Campanas extractoras

Ambiente

Ambiente
Campanas extractoras
Ambiente

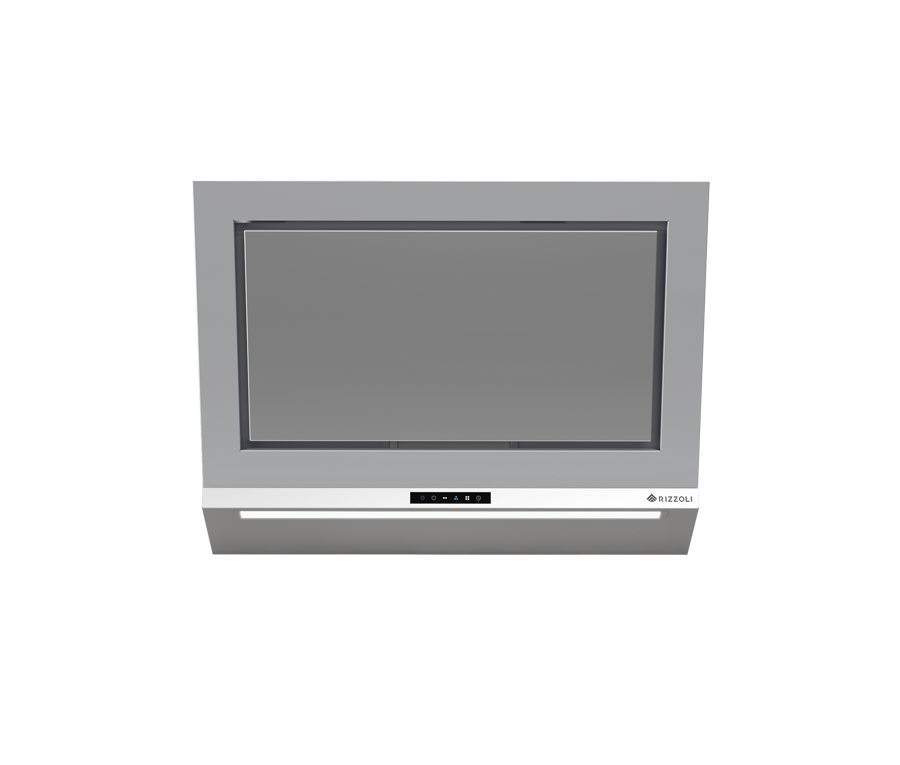

The Ambience Hood stands out for its extremely minimalist and modern look. The degree of upward tilt was designed to allow a better view of the work surface and greater freedom of movement around the kitchen. The extensive range of customisation possibilities in terms of styling and dimensions allows all possible needs to be accommodated, from country settings to modern ambiances.


Esta campana extremadamente minimalista y moderna destaca por su originalidad, con la superficie de aspiración inclinada para que la encimera esté más iluminada y sea más práctica.


Las tecnologías de Rizzoli

Heat resistant Rizzoli Cucine
 No smell filter Rizzoli Cucine
 60 dB Rizzoli Cucine
 Touch control Rizzoli Cucine
 Noise reduction Rizzoli Cucine
 Remote control Rizzoli Cucine
 Eco manifacture Rizzoli Cucine
 Steel structure Rizzoli Cucine
Certificaciones
Datos técnicos
Documentación
CE Rizzoli cucine
Energy label A++ CAPPE Rizzoli cucine
Energy label A+ CAPPE Rizzoli cucine
Partners
HKI Rizzoli cucine

Características técnicas

    • Installation: wall-mounted
    • Cladding: Stainless steel/Painted
    • Ducted or air recirculation version
    • Controls: touch or mechanical control panel
    • Timer function
    • Lighting: with LED bars
    • Dishwasher-safe filters
    • Resistant to high temperatures
    • Remote control (optional)
    • Extraction rate: 875 m3/h
    • Noise level: 60 dB
    • Power consumption: from 294.8 to 296.7 W
    • Speed settings: 4
    • Outlet: ø 150 mm







Datos técnicos

CA6

CA6
A from 450 to 600 mm
B 431 mm
C 496 mm
D (1)
F (2) from 300 to 600 mm
G from 230 to 431 mm
L 100 mm
X 0-150 mm
Ø outlet  150 mm
Max suction power (W)  290 W
LED Power (W) 4,8 W

(1) Flue height upon request.
(2) This value must always be greater than 30 mm, compared to value G.

CA8

CA8
A from 601 to 800 mm
B 431 mm
C 496 mm
D (1)
F (2) from 300 to 800 mm
G from 230 to 431 mm
L 100 mm
X 0-250 mm
Ø outlet  150 mm
Max suction power (W)  290 W
LED Power (W) 6,7 W

(1) Flue height upon request.
(2) This value must always be greater than 30 mm, compared to value G.




CA9

CA9
A from 801 to 900 mm
B 431 mm
C 496 mm
D (1)
F (2) from 300 to 900 mm
G from 230 to 431 mm
L 100 mm
X 0-300 mm
Ø outlet  150 mm
Max suction power (W)  290 W
LED Power (W) 6,7 W

(1) Flue height upon request.
(2) This value must always be greater than 30 mm, compared to value G.




Documentación

Descargar los archivos PDF de la serie


Catálogo de serie
